You've got the lid open, the control head is blinking, and the salt just got refilled. That's the exact moment most homeowners freeze up and start tapping buttons like the softener will reward confidence. It won't. It responds to the numbers you feed it, and if those numbers are wrong, you get wasted salt, wasted water, and hard water sneaking back into the house.
A softener is a simple machine with a picky brain. It needs the right hardness, the right capacity, the right salt dose, and the right regeneration timing to do its job without wasting anything. That's why programming a water softener matters more than the button sequence itself. You're not setting a clock, you're teaching the controller how much work the resin can handle before it needs to clean itself. A well-programmed unit protects plumbing, keeps laundry from feeling scratchy, and helps avoid the kind of hard-water spotting that leads people to search for how to stop white spots on windows after the damage is already visible.
Why Programming Matters Before You Touch a Button
A water softener works by ion exchange. Hard water moves through the resin bed, calcium and magnesium get captured, and sodium is released into the water in their place, which is the basic reason softened water feels and performs differently in the house (University of Nebraska extension). That part is simple. The controller still has to know when the resin is full, and it can only make that call if the settings match the water and the household load.
The controller is doing real work, not guessing
Most residential units are built around a resin tank and a brine tank. The resin tank holds the cation resin beads, and the brine tank stores the salt solution used for regeneration (Pentair). The hardware is straightforward. The programming is where people get sloppy.

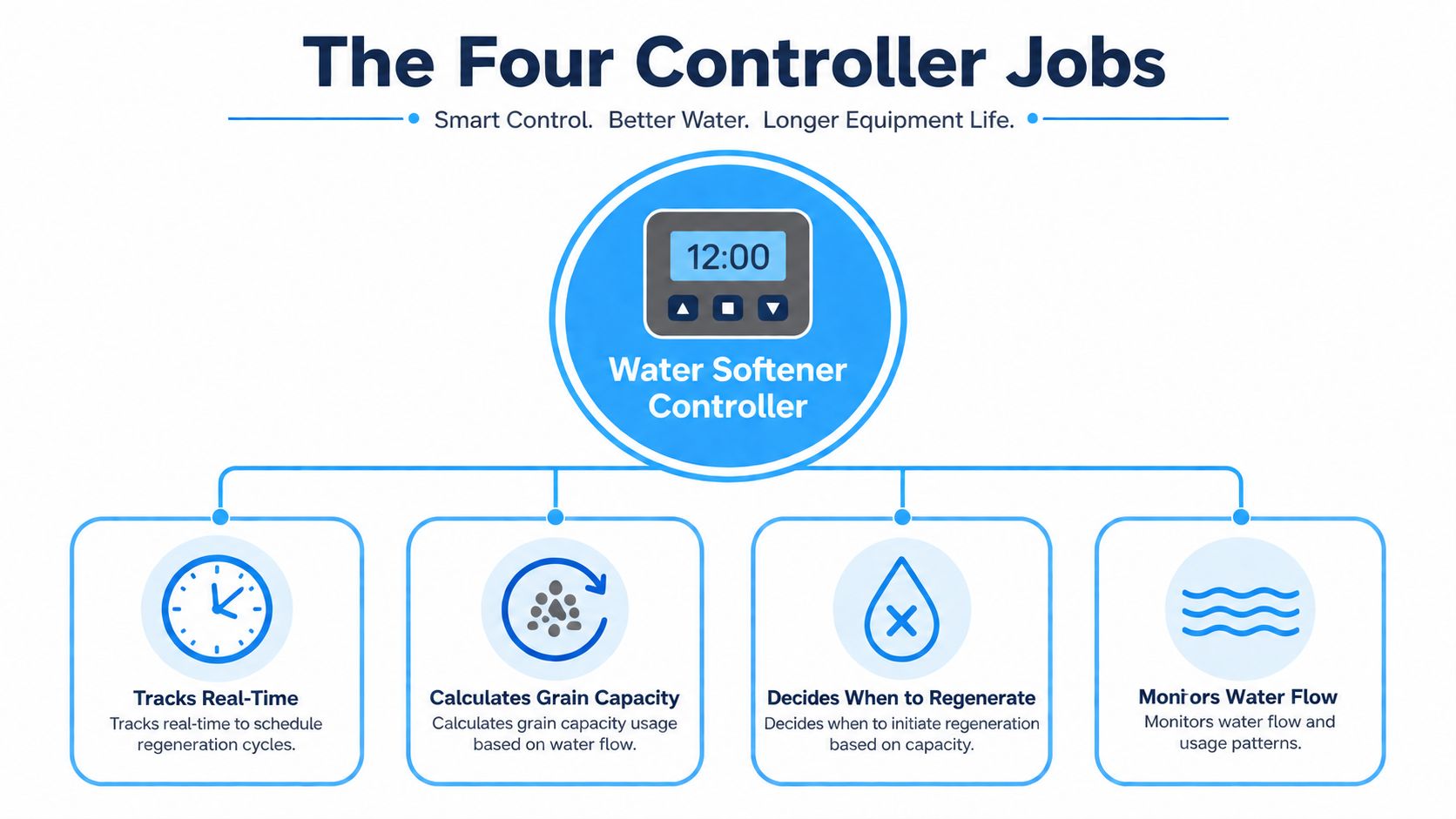

The controller tracks time, estimates capacity, decides when to regenerate, and keeps enough treated water in reserve for the next cycle. If you treat it like a microwave clock, it will answer with bad timing, too many regenerations, or a recharge in the middle of a busy morning. If you want clean water without waste, give it accurate numbers and let it do the math.
Practical rule: set the softener for the house you live in, not the one you wish you had. A quiet two-person household and a full house with guests are two different loads.
The logic behind the settings shows up in daily use. Too little capacity and the unit regenerates too often, which burns salt and water. Too much reserve and you waste usable resin capacity. If the controller is off, hard water leaves spots, soap feels weak, and laundry comes out rough. That is why homeowners end up blaming the resin, the salt, or the brand when the problem is the input values, not the softener itself. If you are also trying to keep glass clear, see how to stop white spots on windows before the stains set in.
For setup help and plain-language checks, use the Water Filter Advisor guidance before you start punching in numbers.

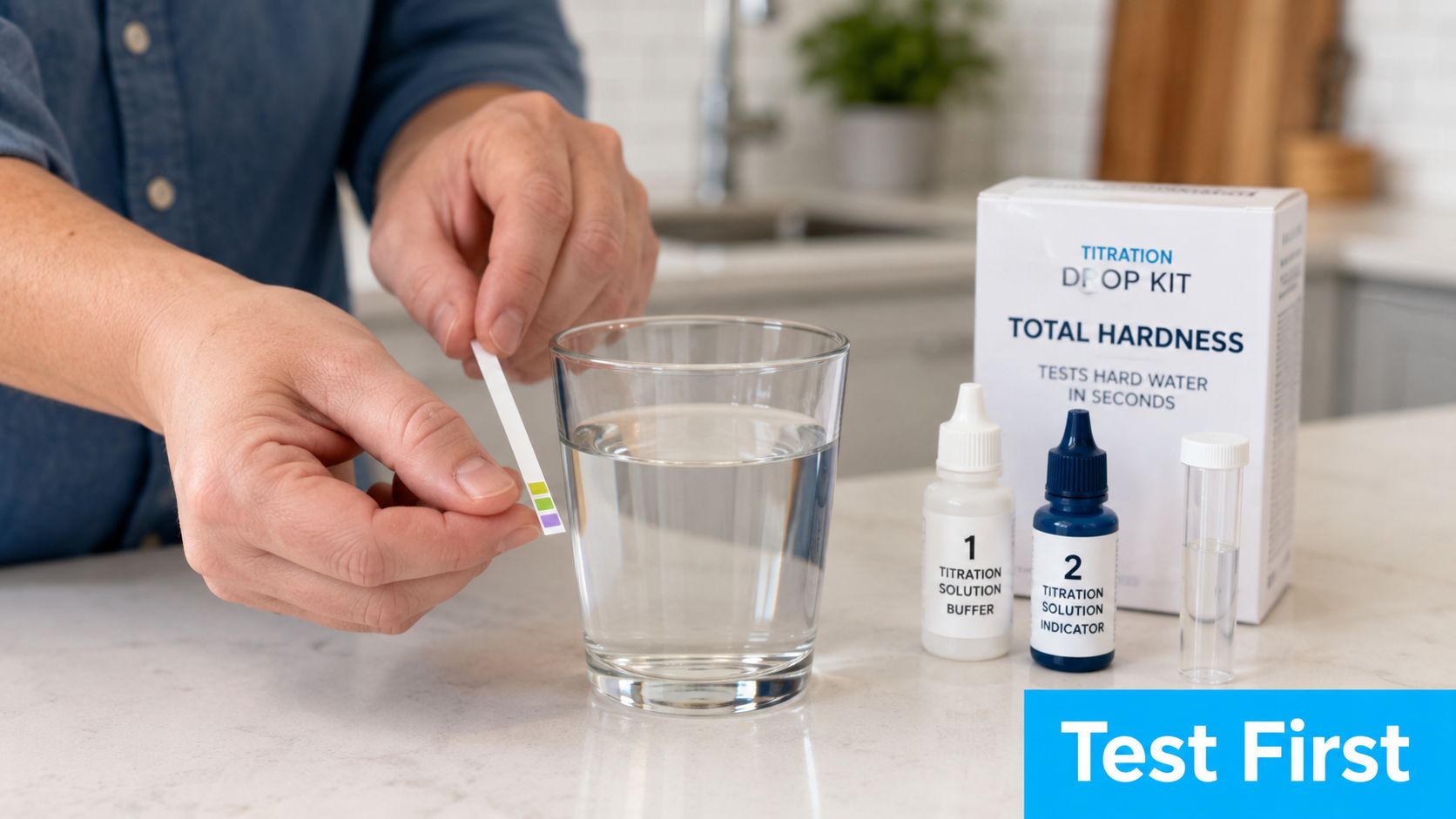

Testing Your Water Hardness the Right Way
Before you enter a single number, test the water you're treating. A strip is fine for a quick check, a titration kit gives you a better read, and a mailed lab test makes sense if you're dealing with a well, iron, or a stubborn water problem. Don't copy a neighbor's setting. Don't trust the last owner's paperwork. Test your own water.
Read the number in the right unit
Hardness usually shows up as grains per gallon, gpg, or parts per million, ppm. If your test gives ppm, you can still use it, but the controller usually wants hardness in gpg. Write the result down before you do anything else.
If your water has iron or manganese, don't pretend those minerals don't count. They do. One technical guide says to add 5 gpg for each 1 ppm of iron, which is why a water sample that tests at 20 gpg with 2 ppm iron should be programmed at 30 gpg (technical programming guide). The same guidance shows a combined example where 6.5 gpg hardness, 2 ppm iron, and 3 ppm manganese produce a programmed setting of 28.5 gpg (technical programming guide).
That adjustment isn't optional. It tells the controller how much real load the resin has to carry. Skip it, and the softener runs out of capacity too soon. Then the house gets a slow return of hard water, which is exactly the kind of failure homeowners notice only after the dishes, shower glass, and laundry start complaining.
Water Filter Advisor's advice page is a useful place to compare testing approaches if you want a second opinion before you start changing settings.
Write down the three numbers that matter
Use this checklist before opening the menu.
- Hardness reading: the base gpg number from your test.
- Iron or manganese adjustment: the added hardness equivalent if those minerals are present.
- Final programmed hardness: the number the controller sees.
That final number is what keeps the softener honest. It tells the machine when the resin is tired instead of guessing based on untreated hardness.
Setting Time, Hardness, and Salt Dose on the Control Head
Not every control head behaves the same. Some are old-school manual dials, some use a basic digital keypad, and some are metered displays that count actual water use. The menu changes, but the logic doesn't. Set the time first, enter the hardness second, and match the salt dose to the resin third.
| Control Head Type | First Setting | Hardness Input | Salt Dose Menu |
|---|---|---|---|
| Manual mechanical dial | Current time | Dial or wheel setting for hardness | Often a separate mechanical adjustment |
| Basic digital keypad | Current time of day | Hardness in gpg | Salt dose in pounds per cubic foot |
| Advanced metered digital display | Current time of day | Adjusted hardness value | Metered capacity and salt efficiency setting |
Start with the clock
The controller uses the current time to decide when to regenerate. If the clock is wrong, the regen time is wrong too. That's how people end up with a softener kicking on during breakfast or running long after the family is awake.
Set the clock before anything else. Then enter the adjusted hardness from the previous section. After that, move to the salt dose. A technical reference shows that salt dosing is commonly tied to resin volume, with 10 lb per cubic foot of resin used as a common starting point, and capacity tied to that salt dose rather than a fixed calendar schedule (capacity guidance, Angi technical guide).
Direct advice: don't freestyle the menu. Use the manufacturer's setup path. The factory default structure exists for a reason, and guessing through hidden options is how people end up with bizarre regeneration behavior.
Use the menu your unit already gives you
A manual dial usually asks for simple mechanical alignment. A digital head may prompt for time, hardness, salt dose, and sometimes reserve or capacity. A metered system may ask for people count or gallons. One manual notes that a meter-initiated softener can be set by matching people count with grains of hardness on the program wheel (manual guide).
For most homes, the big mistake is not the button sequence. It's entering a guessed hardness number and then wondering why the softener seems touchy. Enter the correct number, enter the correct salt dose, and let the controller work from facts instead of folklore.

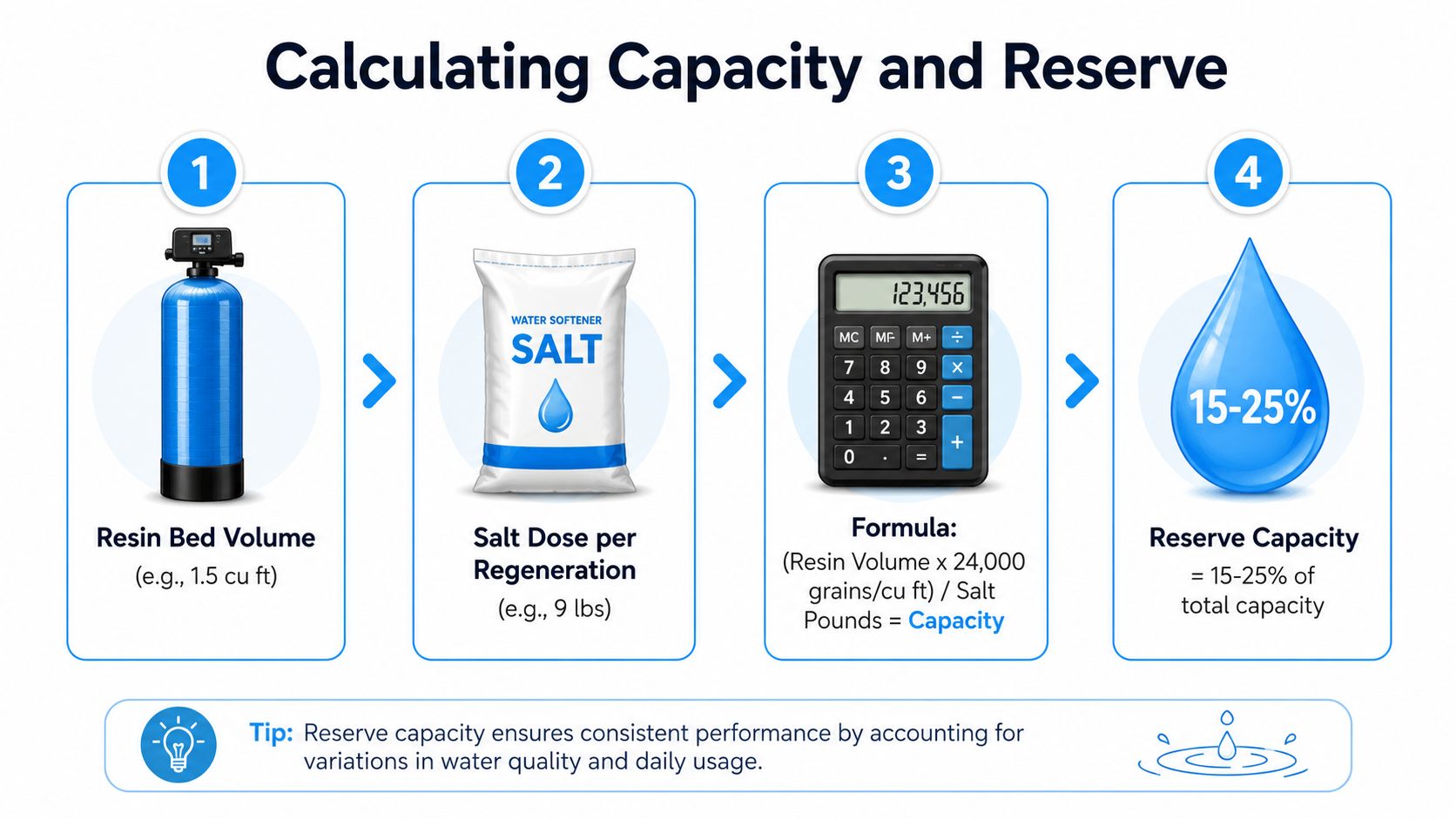

Calculating Capacity and Reserve the Way the Controller Does
Capacity is where the whole setup becomes useful or useless. If you get this wrong, the softener regenerates too soon, too late, or at the wrong rate for the people living in the house. One technical reference says a 1.5 cubic foot resin bed with a 9 lb salt dose gives about 30,000 grains of capacity (Angi technical guide). That's not a random number. That's the working fuel tank.
Convert grains into usable gallons
The controller turns hardness into gallons of usable soft water. One industry explainer says to set salt dose at roughly 10 lb per cubic foot of resin, then divide total resin capacity grains by hardness and subtract reserve so the softener doesn't regenerate too late (purewater guidance). Another practical benchmark says a family of four may regenerate about once every 12,000 gallons, or about 75 gallons per person per day in one capacity method (Angi technical guide).
Here's the logic without the junk. If hardness goes up, usable gallons go down. If the household uses more water, reserve has to increase. If the reserve is too small, the system can run dry before the next regeneration. If it's too large, you waste regeneration cycles and salt.
Use reserve like a buffer, not a guess
Reserve protects the household from running out of soft water between cycles. It is there so the shower doesn't go hard halfway through the week because the controller waited too long. That's why reserve has to reflect the people in the house, not just the size of the tank.
A metered softener is only as smart as the data in it. If the house has changed, the reserve needs to change with it. New roommate, guests, remote work, heavy laundry, summer irrigation, all of that changes demand. The old setting may still run, but it won't be running correctly.
Picking the Right Regeneration Frequency and Time
Regeneration is the part that costs you. It burns salt, it sends water down the drain, and if the timer is wrong, it can cut into normal use. That is why I prefer metered systems in most homes. A time-clock softener regenerates on a set schedule, while a metered unit regenerates after actual water use. When the inputs are right, the metered setup wastes less.
| Trigger Mode | Best For | Salt Efficiency | Setup Effort |
|---|---|---|---|
| Time-clock regeneration | Predictable schedules and simple systems | Lower, because it can regen before it needs to | Low |
| Metered regeneration | Households with changing water use | Better, because it uses real demand data | Higher, because the inputs must be right |
Pick timing that stays out of the way
Many homes use a 3 to 7 day regeneration interval as a standard operating range when the controller runs on a clock (technical programming guide). The common regeneration time is 2 a.m., because that usually avoids morning showers, dishwashing, and laundry demand (technical guidance). That part is straightforward.
The work is matching the program to the house as it changes. A partner starts working from home, houseguests show up, or summer watering shifts the load. The reserve that used to fit may no longer cover the gap. Recheck how the household uses water, then adjust the reserve and frequency to match that pattern.
Don't schedule a regen for convenience. Schedule it so the house never notices it happened.
Trust the meter when the meter is set correctly
A metered system regenerates from actual water use, which is exactly what most homes need if the hardness setting and reserve are accurate (technical programming guide). It is the better choice for homes where usage does not stay fixed.
If the household changes, retune the reserve. If usage drops, do not leave the unit regenerating like a busy office building. If demand rises, do not pretend the old setting still fits. The softener is a data-driven appliance. Feed it current data.
Common Programming Mistakes That Waste Salt and Water
The worst softener problems are usually self-inflicted. People change a setting, forget why they changed it, and then blame the resin when the water starts acting up. The fix is usually one menu deep, not a replacement tank.
The mistakes I see again and again
- Skipping the iron adjustment. This wastes salt and lets iron chew up resin capacity before the controller expects it.
- Using the last owner's hardness setting. That number belongs to their water, not yours.
- Ignoring reserve capacity. The symptom is hard water showing up before the next cycle finishes.
- Overdoing salt dose. More salt doesn't magically mean better softening, it just sends more brine to the drain without fixing bad inputs.
One technical guide shows how iron and manganese have to be folded into the hardness number before programming (technical programming guide). Ignore that, and the unit will look fine on paper while the water turns disappointing in real life.
Match the symptom to the setting
If laundry feels stiff after a regen, look at hardness and reserve first. If salt bridges keep showing up, the salt dose or brine condition may be off. If the water starts tasting odd, the softener may be regenerating at the wrong time or with the wrong capacity assumptions.
A softener can't correct a bad program. It can only faithfully repeat it.
The cleanest homes I've seen weren't running exotic equipment. They were running a unit with the correct hardness input, a sane reserve, and a regen time that didn't fight the family schedule.
Troubleshooting Error Codes and Keeping the Program Honest
Programming doesn't end when you close the menu. It needs maintenance, because households change and control heads do what they're told, even when that instruction stopped making sense months ago. I've seen plenty of softeners look fine until a houseguest stays for a week or a new work schedule changes water use. Then the old settings fall apart.
What the screen is really telling you
On common digital heads, Err1 and Err2 usually mean the controller sees a problem that needs a check, not a mystery to ignore. Low-salt alerts mean the brine side needs attention. Service-due reminders mean the system wants a human to look at it, not assume all is well. Don't silence those messages and walk away.
If the system has a manual regeneration option, use it to confirm the programming works. Trigger a cycle, watch how the unit behaves, and make sure the timing and brine action look normal. If it runs at the wrong time or doesn't behave cleanly, revisit the settings before assuming there's a mechanical failure.
Keep the inputs current
The maintenance rhythm is straightforward. Check salt level monthly. Retest hardness annually. Recalculate capacity whenever the household changes. If the people count changes, the water use changes. If the water chemistry changes, the hardness setting changes with it.
Water Filter Advisor covers softener setup, water testing, and whole-house filtration guidance in a way that's useful if you want to compare your options before buying anything. A good program is not permanent, it's current. The homeowner who keeps the numbers honest gets the cleanest water and the fewest surprises.
If you want a straight answer on whether your softener settings are correct, use Water Filter Advisor to compare testing methods, programming basics, and maintenance guidance before you touch the control head again. That's the difference between guessing at a menu and setting the unit up to treat your house the right way.
